BIRNS Millennium 3P Connectors

3P Connectors Overview
The BIRNS Millennium 3P underwater connector is a very popular larger-midsize subsea connector available with 13 to 83 contacts. The 3P is available in alternate materials Ni-Cu (K-Monel, class A) and Ti.

The Millennium 3P underwater connector is available in coaxial formats (50? and 75?), with top quality polyethylene dielectrics and gold-plated Be-Cu sockets. BIRNS’ new coax contacts have a maximum insertion loss of 0.7 dB at signal frequencies to 3GHz, with an associated maximum SWR of 1.7:1 and withstand open face hydrostatic pressure to depths of 1433m. This new design provides incredible ease of assembly and connects directly to a standard MIL-STD-348 SMA connector. We are converting our lines of subsea coax connectors to include these revolutionary new contacts, and currently offer them in the 3P-1C  and 3P-2C6 configuration.

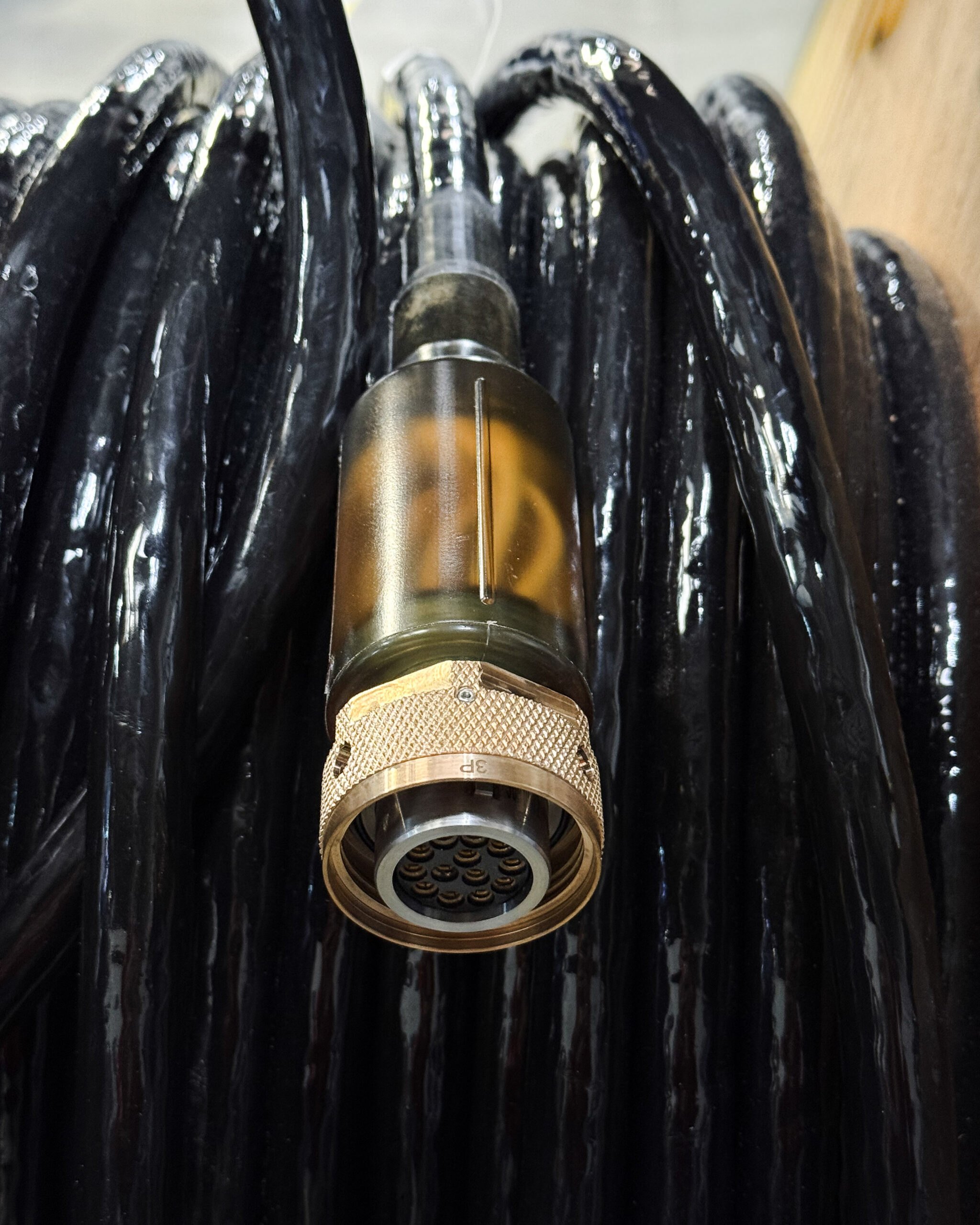

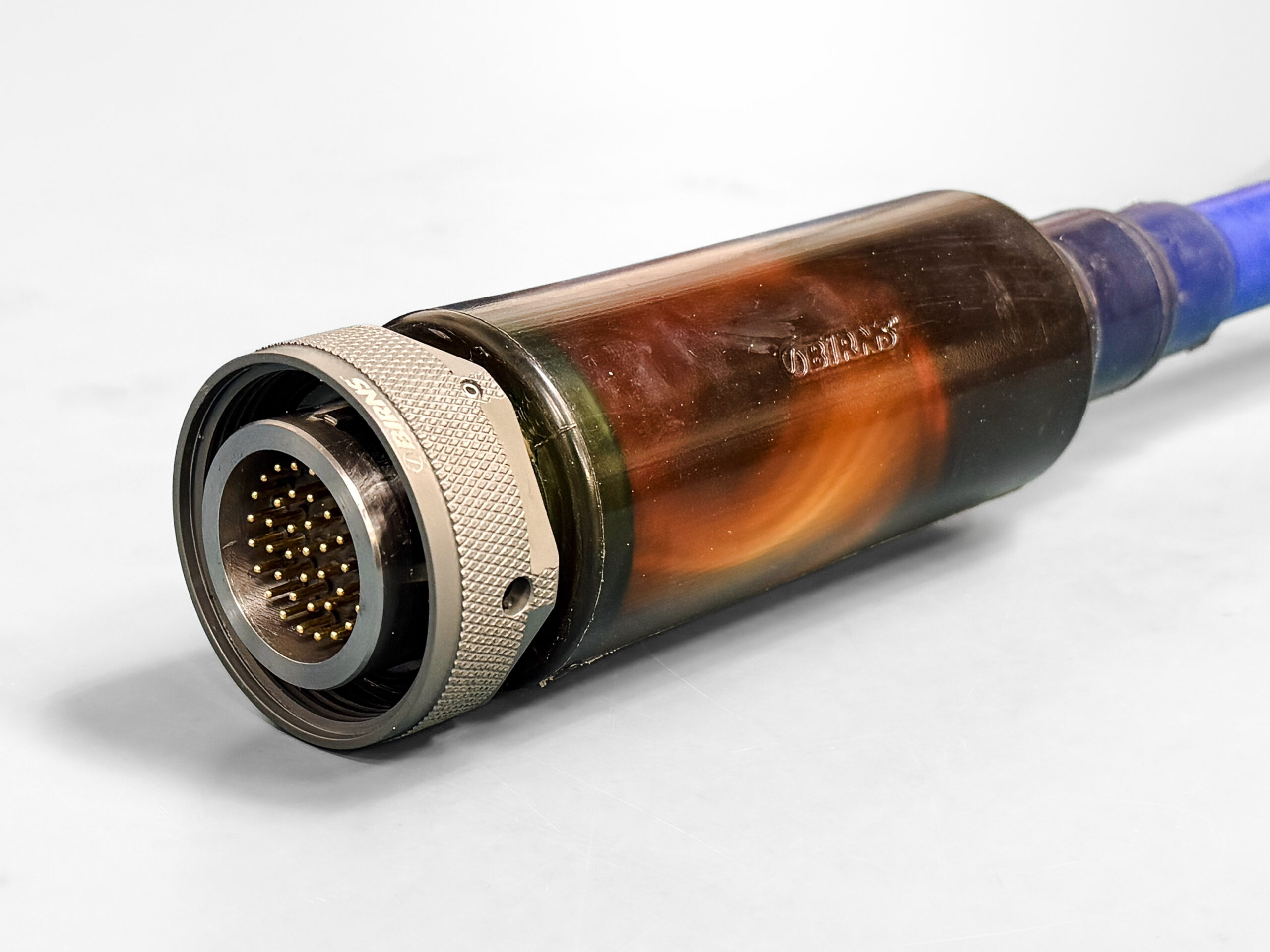

3P Connector Images

Pin Configuration for: 3P-40

  • Electrical Circuits
  • RF Circuits
  • Optical Circuits
  • Notes:
  • 20 AWG (.8mm2) - 40 Wires - 6A
  • - -
  • - -
  • - -
  • - -
  • - -
  • - -

Shell-Insert Pin Configuration & Wiring Worksheet:

BUY ONLINE

Shop all Products for: 3P-40

Click to Shop and purchase BIRNS Millennium products using the following links.

O-Rings are available as replacements or additional parts. BIRNS minimum order is $300 USD

Contact BIRNS Sales or Technical Support Team

BIRNS Sales Inquiries & RFQ's

Upload File or Drawings:

Please select the appropriate contact type above.  A BIRNS representative will be in touch.

Click the BIRNS Millennium Interconnect Solutions catalog to the right for immediate access to product information and technical specifications.

3P Product Information:
Support Materials

Click on the following document links to view or download:
